1067227 | Phoenix Contact

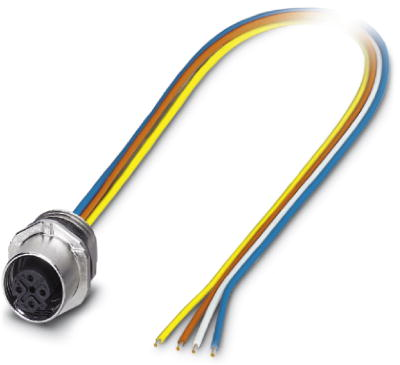

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 0.5 m, 4 A, 1067227
Unit Price (€ / pc.)
10.3768 € *
Available: 0 pcs.
Available in 10 days: 31 pcs.
Leadtime: 2 Weeks **
Bus system cable, 1067227, Phoenix Contact

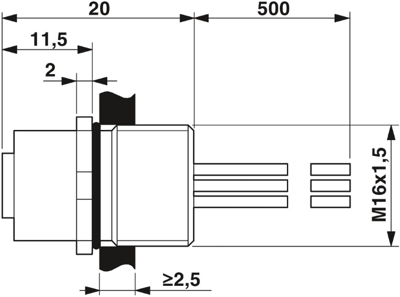

Bus system flush-type socket, PROFINET, 4-position, M12-SPEEDCON, D-coded, Front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Technical specifications
| Connection (1) | M12-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
