1068167 | Phoenix Contact

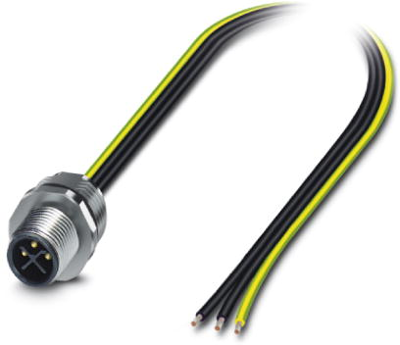

Sensor actuator cable, M12-flange plug, straight to open end, 3 pole, 1.5 m, 12 A, 1068167
Unit Price (€ / pc.)
16.9337 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Power connector, 1068167, Phoenix Contact
Flush-type connector, Power, 3-position, Plug, M12, Front mounting, M16 x 1.5, Individual wires, PP litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- S-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Connection (1) | M12-Flanschstecker, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 1.5 m | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 12 A | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
