1071561 | Phoenix Contact
Sensor actuator cable, M12-cable plug, angled to M12-cable socket, straight, 3 pole, 1.5 m, PUR, black, 4 A, 1071561
Unit Price (€ / pc.)
16.898 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Sensor/actuator cable, 1071561, Phoenix Contact

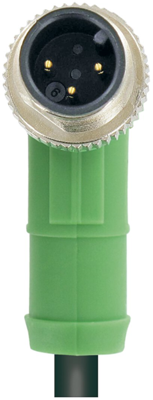

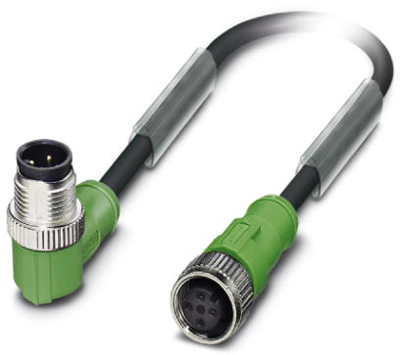

Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Plug angled M12, on socket straight, M12, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Efficient integration of bridging functions directly in the connector
Technical specifications
| Connection (1) | M12-Kabelstecker, abgewinkelt | |
| Connection (2) | M12-Kabeldose, gerade | |
| Pin number | 3-polig | |
| Cable length | 1.5 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
