1089035 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 4 pole, 10 m, PUR, orange, 4 A, 1089035

Order No.: 65P0313
EAN: 4055626892559
MPN:
1089035
SAC-4P-M12MS/10,0-810/M12FS
Series: SAC-4P

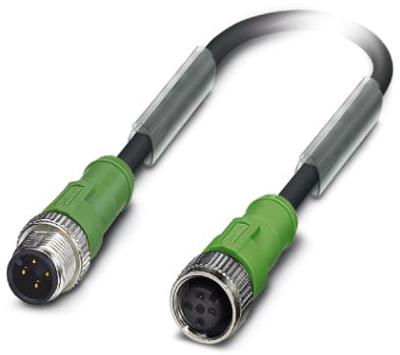

1089035 Phoenix Contact Sensor-Actuator Cables Image 1
1089035 Phoenix Contact Sensor-Actuator Cables Image 2
1089035 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
50.9201 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,273.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
50.9201 €

Sensor/actuator cable, 1089035, Phoenix Contact

Sensor/actuator cable, 4-position, PUR halogen-free, Welding sputter-resistant, Highly flexible, Orange RAL 2003, Plug straight M12, Coding: A, on socket straight, M12, Coding: A, Cable length: 10 m

Technical specifications
Anschluss (1) M12-Kabelstecker, gerade
Anschluss (2) M12-Kabeldose, gerade
Farbe orange
Kabellänge 10 m
LED-Anzeige No
Material PUR
max. Spannung 250 V
Nennstrom 4 A
Polzahl 4-polig
Schutzart (IP) IP65/IP67/IP68
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
