1089955 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 5 m, PVC, black, 12 A, 1089955

Order No.: 65P0515
EAN: 4055626898506
MPN:
1089955
SAC-4P-M12MST/ 5,0-110
Series: SAC-4P

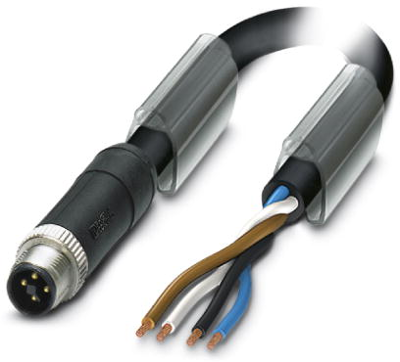

1089955 Phoenix Contact Sensor-Actuator Cables Image 1

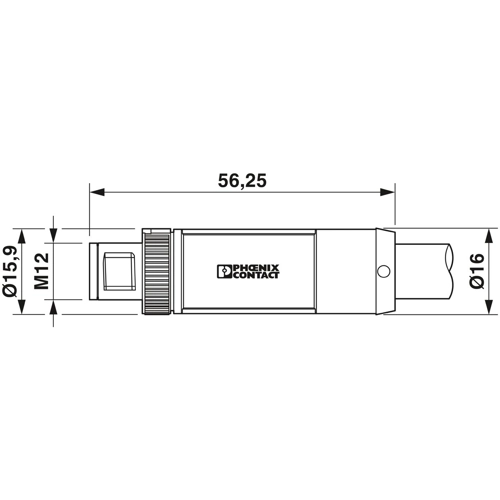

1089955 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
55.1089 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
55.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
55.1089 €

Power cable, 1089955, Phoenix Contact

Power cable, 4-position, PVC, Black-gray RAL 7021, Plug straight M12, Coding: T, on free cable end, Cable length: 5 m, for direct current up to 12 A/63 V

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Protection against mismatching, thanks to special T-coding
Technical specifications
Anschluss (1) M12-Kabelstecker, gerade
Anschluss (2) offenes Ende
Farbe schwarz
Kabellänge 5 m
LED-Anzeige No
Material PVC
max. Spannung 63 V
Nennstrom 12 A
Polzahl 4-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
