1224229 | Phoenix Contact
Sensor actuator cable, M12-cable plug, angled to M12-cable socket, straight, 5 pole, 1.5 m, PUR, black gray, 4 A, 1224229
Unit Price (€ / pc.)
28.4053 € *
Available: 0 pcs.
Leadtime: On Request **

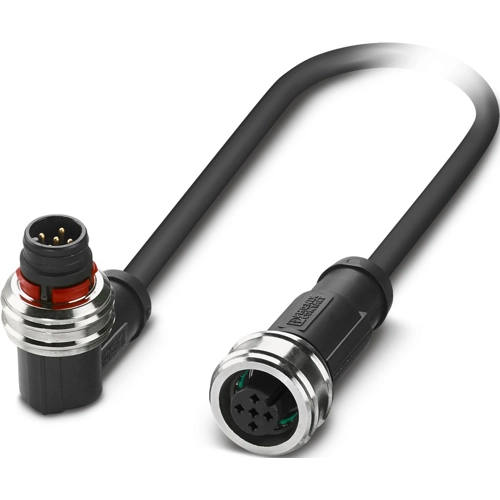

Sensor/actuator cable, 1224229, Phoenix Contact
Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12 Push Pull, coding: A, on Socket straight M12 Push Pull, coding: A, cable length: 1.5 m.
Features
- Easy and safe: 100 % electrically tested plug-in components
- Save time, thanks to installation with push-pull fast locking
Technical specifications

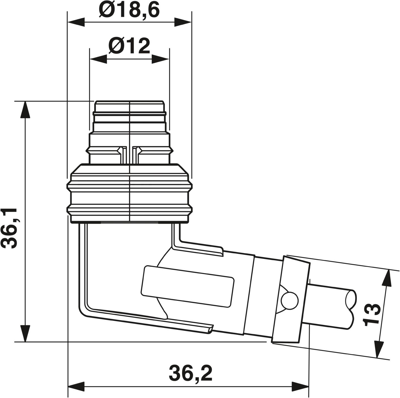

| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |

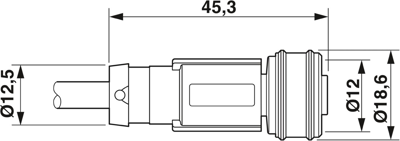

| Anschluss (2) | M12-Kabeldose, gerade | |
| Farbe | schwarzgrau | |
| Kabellänge | 1.5 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 48 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
