1392195 | Phoenix Contact

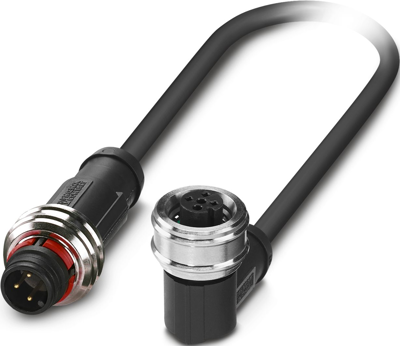

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 3 pole, 0.6 m, PUR, black gray, 4 A, 1392195
Unit Price (€ / pc.)
22.2768 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1392195, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12 Push Pull, coding: A, on Socket angled M12 Push Pull, coding: A, cable length: 0.6 m.
Features
- Easy and safe: 100 % electrically tested plug-in components
- Save time, thanks to installation with push-pull fast locking
Technical specifications

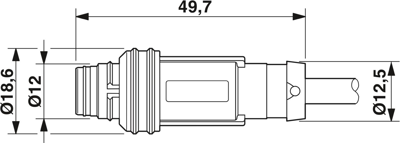

| Anschluss (1) | M12-Kabelstecker, gerade | |

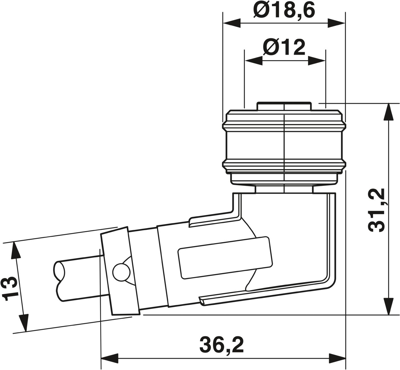

| Anschluss (2) | M12-Kabeldose, abgewinkelt | |
| Farbe | schwarzgrau | |
| Kabellänge | 0.6 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 250 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
