1404017 | Phoenix Contact
Sensor actuator cable, M12-cable socket, angled to open end, 4 pole, 5 m, PP-EPDM, gray, 4 A, 1404017
Unit Price (€ / pc.)
26.0134 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

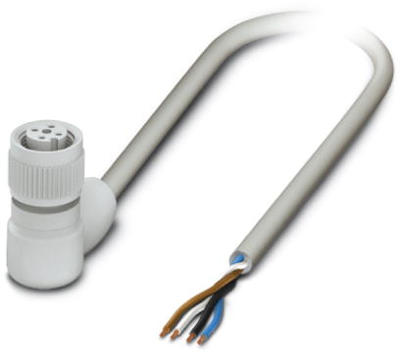

Sensor/actuator cable, 1404017, Phoenix Contact
Sensor/actuator cable, 4-position, PP-EPDM, Gray RAL 7035, Free cable end, on socket angled, M12, Coding: A, Cable length: 5 m, Hygienic design, with plastic knurl
Features
- Easy and safe: 100% electrically tested plug-in components
- Contamination can be detected quickly – thanks to the light color
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 4-polig | |
| Kabellänge | 5 m | |
| Farbe | grau | |
| Material | PP-EPDM | |
| Schutzart (IP) | IP65/IP67/IP68 | |
| LED-Anzeige | No | |
| max. Spannung | 250 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
