1404053 | Phoenix Contact

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 1.5 m, PP-EPDM, gray, 4 A, 1404053

Order No.: 61P6969
EAN: 4046356679084
MPN:
1404053
SAC-5P-1,5-600/M12FR HD
Series: SAC-5P

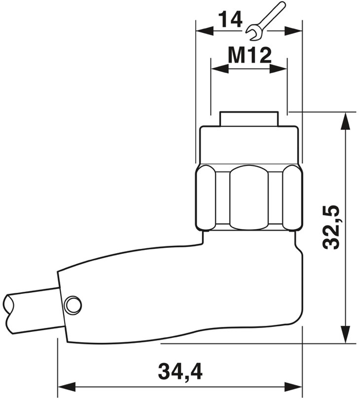

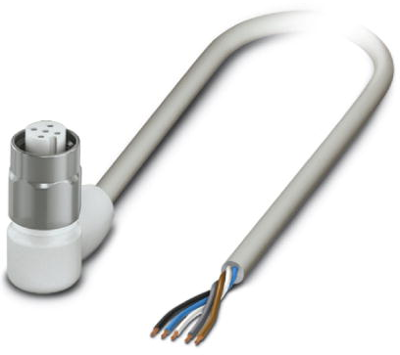

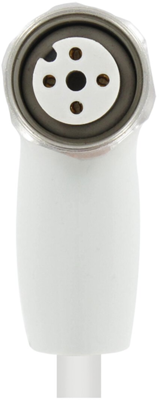

1404053 Phoenix Contact Sensor-Actuator Cables Image 1
1404053 Phoenix Contact Sensor-Actuator Cables Image 2
1404053 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
25.8468 € *
Available: 0 pcs.
Available in 10 days: 740 pcs.
Leadtime: 1 Week **
Total Price:
25.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
25.8468 €

Sensor/actuator cable, 1404053, Phoenix Contact

Sensor/actuator cable, 5-position, PP-EPDM halogen-free, Gray RAL 7035, Free cable end, on socket angled, M12, Coding: A, Cable length: 1.5 m, Hygienic design, with high-grade steel knurl

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Stainless steel type 1.4404 used to provide corrosion protection for all exposed metal parts
  • Contamination can be detected quickly – thanks to the light color
Technical specifications
Anschluss (1) M12-Kabeldose, abgewinkelt
Anschluss (2) offenes Ende
Farbe grau
Kabellänge 1.5 m
LED-Anzeige No
Material PP-EPDM
max. Spannung 48 V
Nennstrom 4 A
Polzahl 5-polig
Schutzart (IP) IP65/IP67/IP68
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
