1404060 | Phoenix Contact

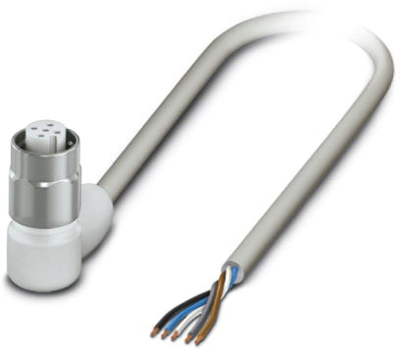

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 5 m, PP-EPDM, gray, 4 A, 1404060
Unit Price (€ / pc.)
38.7702 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Sensor/actuator cable, 1404060, Phoenix Contact
Sensor/actuator cable, 5-position, PP-EPDM halogen-free, Gray RAL 7035, Free cable end, on socket angled, M12, Coding: A, with 3 LEDs, Cable length: 5 m, Hygienic design, with high-grade steel knurl
Features
- Easy and safe: 100% electrically tested plug-in components
- Stainless steel type 1.4404 used to provide corrosion protection for all exposed metal parts
- Contamination can be detected quickly – thanks to the light color
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | grau | |
| Kabellänge | 5 m | |
| LED-Anzeige | Yes | |
| Material | PP-EPDM | |
| max. Spannung | 24 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP67/IP68 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
