1404187 | Phoenix Contact

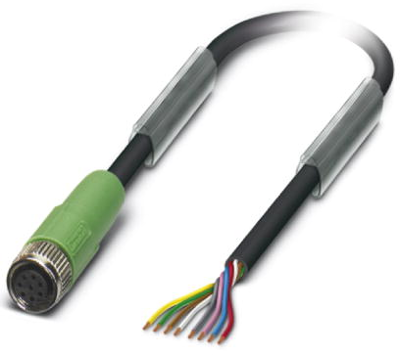

Sensor actuator cable, M8-cable socket, straight to open end, 8 pole, 1.5 m, PUR, black, 1.5 A, 1404187
Unit Price (€ / pc.)
32.6179 € *
Available: 0 pcs.
Available in 10 days: 82 pcs.
Leadtime: 1 Week **
Sensor/actuator cable, 1404187, Phoenix Contact
Sensor/actuator cable, 8-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on socket straight, M8, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save space – with high-pos. Connectors
Technical specifications
| Connection (1) | M8-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Colour | schwarz | |
| Cable length | 1.5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 8-polig | |
| Degree of protection (IP) | IP65/IP67/IP68 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
