1405239 | Phoenix Contact
Sensor actuator cable, M12-flange plug, straight to open end, 4 pole, 0.5 m, 4 A, 1405239
Unit Price (€ / pc.)
52.9907 € *
Available: 0 pcs.
Available in 10 days: 29 pcs.
Leadtime: 1 Week **

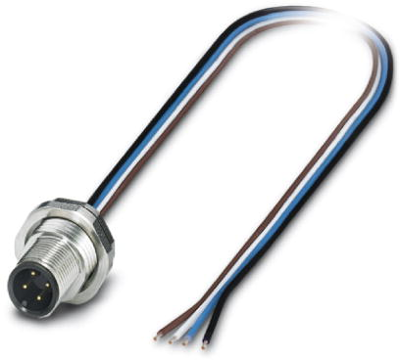

Sensor-actuator connector, 1405239, Phoenix Contact
Sensor/actuator flush-type plug, 4-pole, M12, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Fast locking system
- A-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: II
Applications
- For high transmission safety
Technical specifications
| Connection (1) | M12-Flanschstecker, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
