1406477 | Phoenix Contact
Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 1.5 m, PP-EPDM, gray, 4 A, 1406477
Unit Price (€ / pc.)
16.8861 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

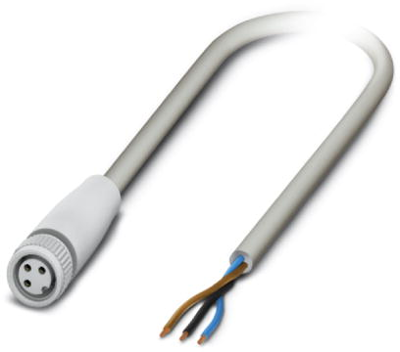

Sensor/actuator cable, 1406477, Phoenix Contact
Sensor/actuator cable, 3-position, PP-EPDM halogen-free, Gray RAL 7035, Free cable end, on socket straight, M8, Cable length: 1.5 m, Hygienic design, with plastic knurl
Features
- Easy and safe: 100% electrically tested plug-in components
- Contamination can be detected quickly – thanks to the light color
Technical specifications
| Connection (1) | M8-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 3-polig | |
| Cable length | 1.5 m | |
| Colour | grau | |
| Material | PP-EPDM | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 48 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
