1414811 | Phoenix Contact
Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 5 m, PVC, gray, 16 A, 1414811
Unit Price (€ / pc.)
97.3658 € *
Available: 0 pcs.
Leadtime: On Request **

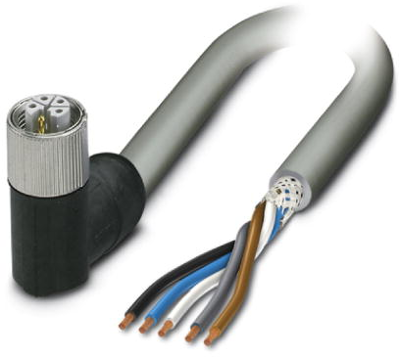

Power cable, 1414811, Phoenix Contact
Power cable, 5-position, PVC, Gray RAL 7001, Shielded (Advanced Shielding Technology), Socket angled M12, Coding: L, on free cable end, Cable length: 5 m, for direct current up to 16 A/63 V
Features
- Easy and safe: 100% electrically tested plug-in components
- Protection against mismatching, thanks to special L-coding
- Shield power reliably – 360° shielding to reduce electromagnetic loads
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | grau | |
| Kabellänge | 5 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 63 V | |
| Nennstrom | 16 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP67/IP68 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
