1415202 | Phoenix Contact

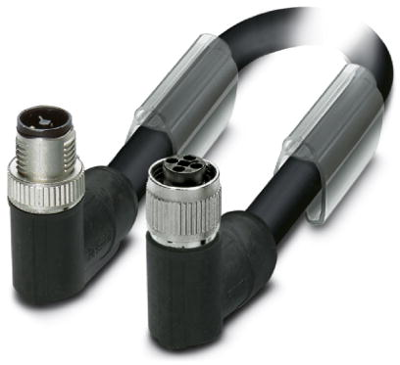

Sensor actuator cable, M12-cable plug, angled to M12-cable socket, angled, 4 pole, 1.5 m, PUR, black, 12 A, 1415202
Unit Price (€ / pc.)
92.0941 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Power cable, 1415202, Phoenix Contact
Power cable, 4-position, PUR halogen-free, Black RAL 9005, Shielded (Advanced Shielding Technology), Plug angled M12, Coding: T, on socket angled, M12, Coding: T, Cable length: 1.5 m, for direct current up to 12 A/63 V
Features
- Easy and safe: 100% electrically tested plug-in components
- Protection against incorrect connection using special T-coding
- Our standard: robust halogen-free PUR cable
- Shield power reliably – 360° shielding to reduce electromagnetic loads
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt | |
| Farbe | schwarz | |
| Kabellänge | 1.5 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 63 V | |
| Nennstrom | 12 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
