1415297 | Phoenix Contact

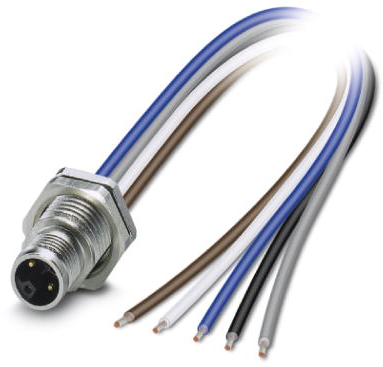

Plug, M12, 5 pole, strand connection, Screw locking, straight, 1415297

Order No.: 62P3938
EAN: 4055626056265
MPN:
1415297
SACC-DSI-M12MSL-4FE-M16XL/0,2
Series: SACC
1415297 Phoenix Contact Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
27.9531 € *
Available: 0 pcs.
Available in 10 days: 27 pcs.
Leadtime: 1 Week **
Total Price:
27.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.9531 €

Power connector, 1415297, Phoenix Contact

Device connector, rear mounting, Power, 5-position, Plug, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², TPE litz wire01.07.2022

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • L-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67

Applications

  • For transmitting high power
Technical specifications
Anschluss (1) M12-Flanschstecker, gerade
Anschluss (2) offenes Ende
Kabellänge 0.2 m
LED-Anzeige No
max. Spannung 63 V
Polzahl 5-polig
Schutzart (IP) IP67
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
