1415523 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 3 pole, 1.5 m, PVC, black, 4 A, 1415523
Unit Price (€ / pc.)
36.2474 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

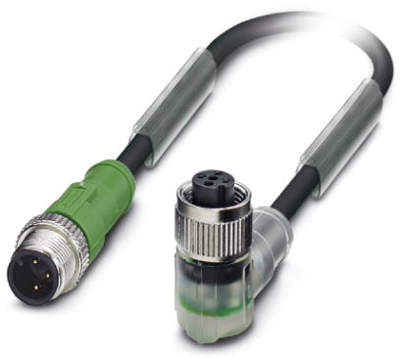

Sensor/actuator cable, 1415523, Phoenix Contact
Sensor/actuator cable, 3-position, PVC, Black RAL 9005, Plug straight M12, Coding: A, on socket angled, M12, Coding: A, with 2 LEDs, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |

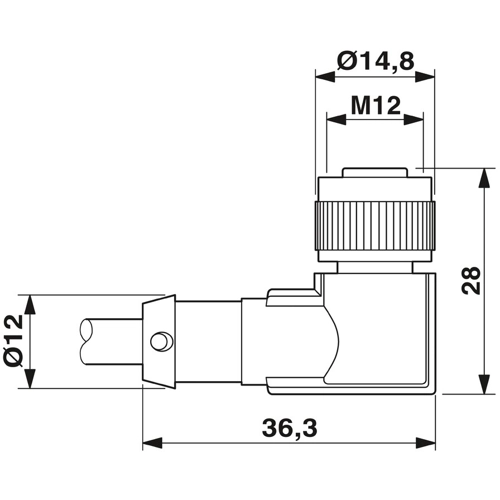

| Anschluss (2) | M12-Kabeldose, abgewinkelt | |
| Polzahl | 3-polig | |
| Kabellänge | 1.5 m | |
| Farbe | schwarz | |
| Material | PVC | |
| Schutzart (IP) | IP65/IP67/IP68 | |
| LED-Anzeige | Yes | |
| max. Spannung | 24 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
