1417703 | Phoenix Contact
Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 0.6 m, PUR, black, 4 A, 1417703
Unit Price (€ / pc.)
8.0087 € *
Available: 0 pcs.
Available in 10 days: 149 pcs.
Leadtime: 1 Week **

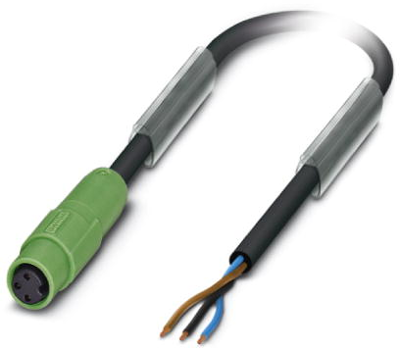

Sensor/actuator cable, 1417703, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on socket straight, M8 Snap-in, Cable length: 0.6 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with snap-in fast locking system
- Our standard: robust halogen-free PUR cable
Technical specifications
| Anschluss (1) | M8-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 0.6 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 48 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
