1419412 | Phoenix Contact

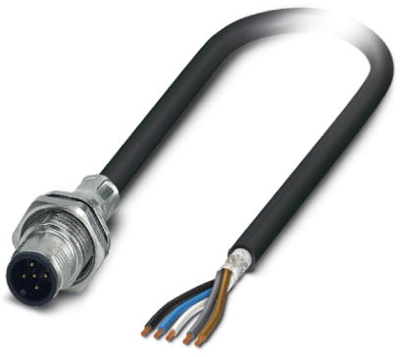

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 2 m, PUR, black, 4 A, 1419412
Unit Price (€ / pc.)
67.4849 € *
Available: 0 pcs.
Leadtime: 1 Week **
Device connector, 1419412, Phoenix Contact

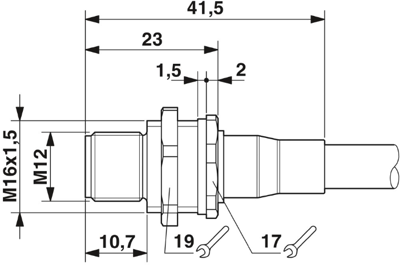

Flush-type plug, Shielded, 5-position, M12, A-coded, Rear/screw mounting with M16 thread, with 2 m cable, 5 x 0.34 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 5-polig | |
| Kabellänge | 2 m | |
| Farbe | schwarz | |
| Material | PUR | |
| Schutzart (IP) | IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
