1419616 | Phoenix Contact

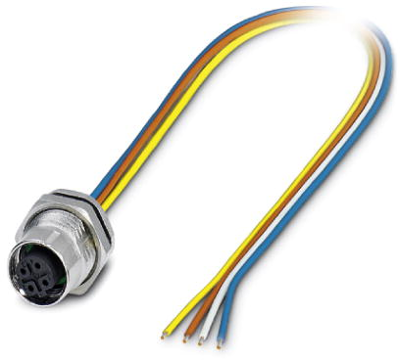

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, 4 A, 1419616
Unit Price (€ / pc.)
24.3712 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Sensor-actuator connector, 1419616, Phoenix Contact
Device connector, rear mounting, 4-position, Socket, straight, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Easy PCB assembly
- Fast locking system
- D-coded
- Overvoltage category: II
- Pollution degree: 3
Applications
- For transmission of signals
- For data transimission
- For power transimission
Technical specifications
| Connection (1) | M12-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
