1419632 | Phoenix Contact

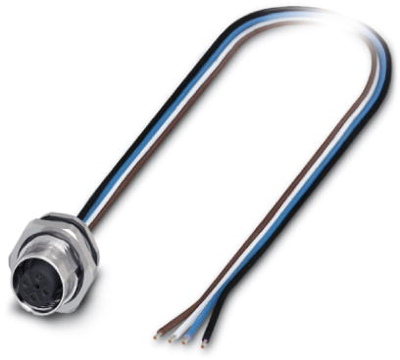

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, 4 A, 1419632

Order No.: 67F5000
EAN: 4046356533485
MPN:
1419632
SACC-DSI-M12FS-4CON-M16/0,5
Series: SACC
1419632 Phoenix Contact Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
24.3712 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
24.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.3712 €

Sensor-actuator connector, 1419632, Phoenix Contact

Sensor/actuator flush-type socket, 4-pole, M12 SPEEDCON, rear/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Fast locking system
  • Pollution degree: 3
  • Overvoltage category: II

Applications

  • For signal transmission
  • For data transimission
  • For power transimission
Technical specifications
Anschluss (1) M12-Flanschbuchse, gerade
Anschluss (2) offenes Ende
Kabellänge 0.5 m
LED-Anzeige No
max. Spannung 250 V
Nennstrom 4 A
Polzahl 4-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
