1419658 | Phoenix Contact

Sensor actuator cable, M12-flange socket, straight to open end, 5 pole, 0.5 m, 4 A, 1419658

Order No.: 67F5001
EAN: 4046356533508
MPN:
1419658
SACC-DSI-M12FS-5CON-M16/0,5
Series: SACC

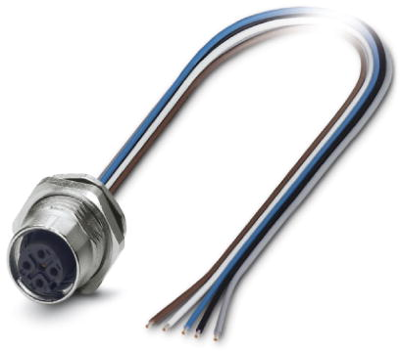

1419658 Phoenix Contact Sensor-Actuator Cables Image 1
1419658 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
17.3859 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
17.39 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3859 €
5 pcs.
15.3153 €
20 pcs.
14.2681 €
50 pcs.
13.6255 €
100 pcs.
12.9472 €
*incl. VAT plus shipping costs
**Subject to prior sale

Device connector, 1419658, Phoenix Contact

Device connector, Rear mounting, Universal, 5-position, Flush-type female connector, Straight, M12-Standard, Coding: A , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
Anschluss (1) M12-Flanschbuchse, gerade
Anschluss (2) offenes Ende
Kabellänge 0.5 m
LED-Anzeige No
max. Spannung 60 V
Nennstrom 4 A
Polzahl 5-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
