1424111 | Phoenix Contact

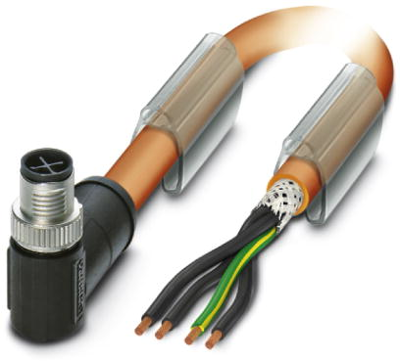

Sensor actuator cable, M12-cable plug, angled to open end, 4 pole, 10 m, PUR, orange, 12 A, 1424111
Unit Price (€ / pc.)
133.3157 € *
Available: 0 pcs.
Available in 10 days: 17 pcs.
Leadtime: 1 Week **
Power cable, 1424111, Phoenix Contact
Power cable, 4-position, PUR halogen-free, Orange RAL 2003, Shielded (Advanced Shielding Technology), Plug angled M12, Coding: S, on free cable end, Cable length: 10 m, for AC current up to 12 A/690 V
Features
- Easy and safe: 100% electrically tested plug-in components
- Protection against incorrect connection using special S-coding
- Our standard: robust halogen-free PUR cable
- Shield power reliably – 360° shielding to reduce electromagnetic loads
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | orange | |
| Kabellänge | 10 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 690 V | |
| Nennstrom | 12 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
