1424134 | Phoenix Contact
Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, 12 A, 1424134
Unit Price (€ / pc.)
31.6659 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

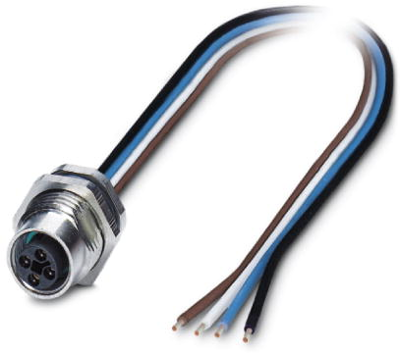

Power connector, 1424134, Phoenix Contact
Device connector, rear mounting, Power, 4-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.
Features
- Pre-assembled with litz wires for immediate use
- T-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: III
Applications
- For transmitting high power
Technical specifications
| Anschluss (1) | M12-Flanschbuchse, gerade | |
| Anschluss (2) | offenes Ende | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| max. Spannung | 63 V | |
| Nennstrom | 12 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
