1424615 | Phoenix Contact

Sensor actuator cable, M12-cable plug, angled to open end, 5 pole, 5 m, PVC, gray, 12 A, 1424615

Order No.: 65P1447
EAN: 4055626375403
MPN:
1424615
SAC-5P-M12MRL/ 5,0-510 FE
Series: SAC-5P

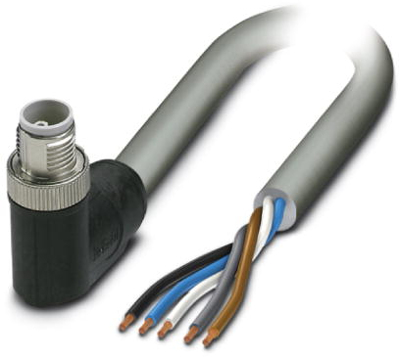

1424615 Phoenix Contact Sensor-Actuator Cables Image 1
1424615 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
67.4135 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
67.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
67.4135 €

Power cable, 1424615, Phoenix Contact

Power cable, 5-position, PVC, Gray RAL 7001, Plug angled M12, Coding: L, on free cable end, Cable length: 5 m, for direct current up to 12 A/63 V

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Protection against mismatching, thanks to special L-coding
Technical specifications
Anschluss (1) M12-Kabelstecker, abgewinkelt
Anschluss (2) offenes Ende
Farbe grau
Kabellänge 5 m
LED-Anzeige No
Material PVC
max. Spannung 63 V
Nennstrom 12 A
Polzahl 5-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
