1425070 | Phoenix Contact

Sensor actuator cable, M12-cable plug, angled to open end, 4 pole, 3 m, PUR, black, 16 A, 1425070

Order No.: 65P0686
EAN: 4055626384085
MPN:
1425070
SAC-4P-M12MRL/ 3,0-PUR
Series: SAC-4P

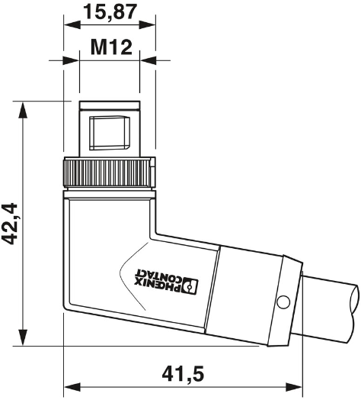

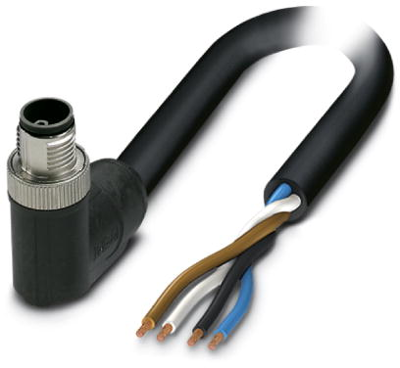

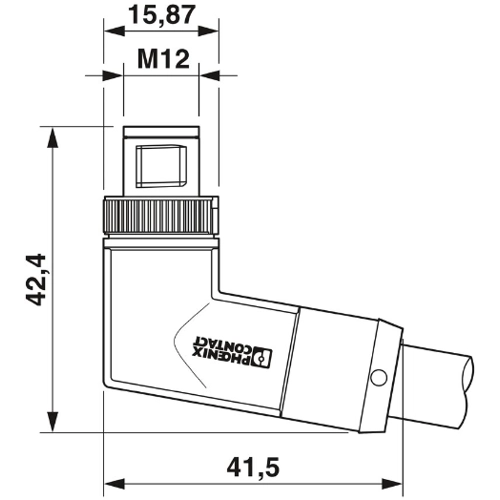

1425070 Phoenix Contact Sensor-Actuator Cables Image 1
1425070 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
62.0585 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
62.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
62.0585 €

Power cable, 1425070, Phoenix Contact

Power cable, 4-position, PUR halogen-free, Black-gray RAL 7021, Plug angled M12, Coding: L, on free cable end, Cable length: 3 m, for direct current up to 16 A/63 V

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Protection against mismatching, thanks to special L-coding
  • Our standard: robust halogen-free PUR cable
Technical specifications
Anschluss (1) M12-Kabelstecker, abgewinkelt
Anschluss (2) offenes Ende
Farbe schwarz
Kabellänge 3 m
LED-Anzeige No
Material PUR
max. Spannung 63 V
Nennstrom 16 A
Polzahl 4-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
