1430268 | Phoenix Contact
Sensor actuator cable, M12-cable plug, angled to open end, 17 pole, 5 m, PUR/PVC, black, 1.5 A, 1430268
Unit Price (€ / pc.)
130.5787 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 1 Week **
Sensor/actuator cable, 1430268, Phoenix Contact

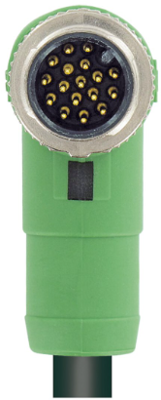

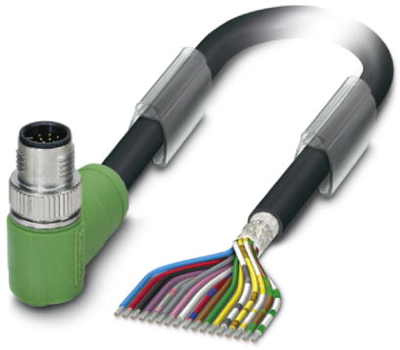

Sensor/actuator cable, 17-position, PUR/PVC, Black RAL 9005, Shielded, Plug angled M12 SPEEDCON, Coding: A, on free cable end, Cable length: 5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Save space – with high-pos. Connectors
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 17-polig | |
| Kabellänge | 5 m | |
| Farbe | schwarz | |
| Material | PUR/PVC | |
| Schutzart (IP) | IP65/IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 30 V | |
| Nennstrom | 1.5 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
