1435056 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to valve connector DIN shape A, 5 pole, 1.5 m, PUR, black, 4 A, 1435056
Unit Price (€ / pc.)
39.3652 € *
Available: 0 pcs.
Leadtime: On Request **

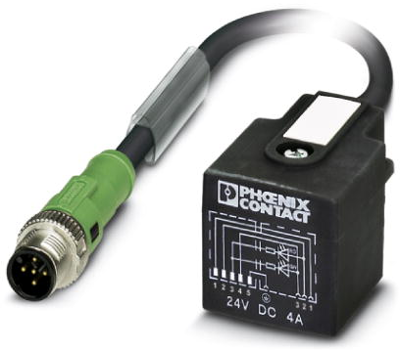

Sensor/actuator cable, 1435056, Phoenix Contact
Sensor/actuator cable, 5-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M12 SPEEDCON, Coding: A, on valve connector AD (pressure switch), with 2 LEDs, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Our standard: robust halogen-free PUR cable
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | Ventilsteckverbinder DIN form A | |
| Polzahl | 5-polig | |
| Kabellänge | 1.5 m | |
| Farbe | schwarz | |
| Material | PUR | |
| Schutzart (IP) | IP65/IP67 | |
| LED-Anzeige | Yes | |
| max. Spannung | 24 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
