1435098 | Phoenix Contact

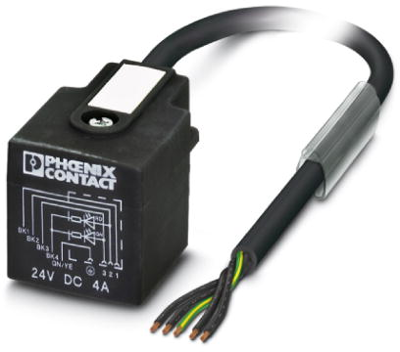

Sensor actuator cable, valve connector DIN shape A to open end, 5 pole, 3 m, PUR, black, 4 A, 1435098

Order No.: 61P6896
EAN: 4046356413459
MPN:
1435098
SAC-5P- 3,0-PUR/AD-2L
Series: SAC-5P
1435098 Phoenix Contact Sensor-Actuator Cables Image 1
1435098 Phoenix Contact Sensor-Actuator Cables Image 2
1435098 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
29.9642 € *
Available: 0 pcs.
Available in 10 days: 157 pcs.
Leadtime: 1 Week **
Total Price:
29.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.9642 €

Sensor/actuator cable, 1435098, Phoenix Contact

Sensor/actuator cable, 5-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on valve connector AD (pressure switch), with 2 LEDs, Cable length: 3 m

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Our standard: robust halogen-free PUR cable
Technical specifications
Anschluss (1) Ventilsteckverbinder DIN form A
Anschluss (2) offenes Ende
Farbe schwarz
Kabellänge 3 m
LED-Anzeige Yes
Material PUR
max. Spannung 24 V
Nennstrom 4 A
Polzahl 5-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
