1437494 | Phoenix Contact

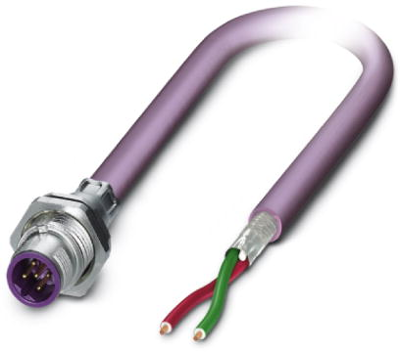

Sensor actuator cable, M12-cable plug, straight to open end, 2 pole, 1 m, PUR, purple, 4 A, 1437494
Unit Price (€ / pc.)
64.1648 € *
Available: 0 pcs.
Available in 10 days: 6 pcs.
Leadtime: 1 Week **
Bus system cable, 1437494, Phoenix Contact

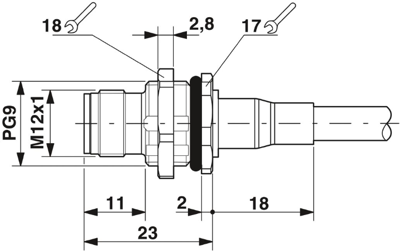

Bus system flush-type plug, PROFIBUS, 2-position, M12, Shielded, B-coded, SPEEDCON, Rear/screw mounting with Pg9 thread, with 1.0 m bus cable, 2 x 0.25 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 2-polig | |
| Kabellänge | 1 m | |
| Farbe | violett | |
| Material | PUR | |
| Schutzart (IP) | IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
