1437562 | Phoenix Contact

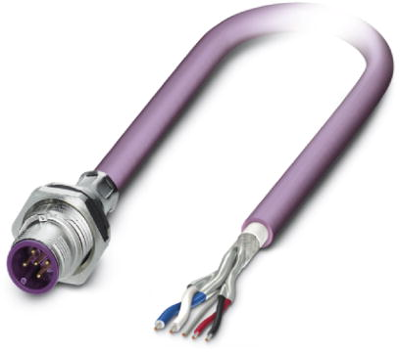

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 0.5 m, PUR, purple, 4 A, 1437562
Unit Price (€ / pc.)
62.7725 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Bus system cable, 1437562, Phoenix Contact

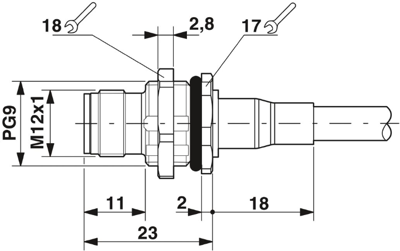

Bus system flush-type plug, DeviceNet/CANopen, 5-position, M12, Shielded, A-coded, SPEEDCON, Rear/screw mounting with Pg9 thread, with 1.0 m bus cable, 2 x 0.2 mm², 2 x 0.32 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 5-polig | |
| Kabellänge | 0.5 m | |
| Farbe | violett | |
| Material | PUR | |
| Schutzart (IP) | IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
