1442188 | Phoenix Contact

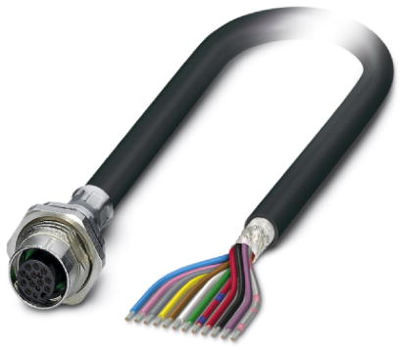

Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 1 m, PVC, black, 1.5 A, 1442188
Unit Price (€ / pc.)
74.2917 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Device connector, 1442188, Phoenix Contact

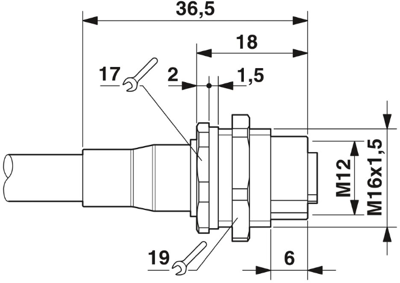

Flush-type socket, Shielded, 12-position, M12, A-coded, Rear/screw mounting with M16 thread, with 1 m cable, 12 x 0.14 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Colour | schwarz | |
| Cable length | 1 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 12-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
