1442272 | Phoenix Contact

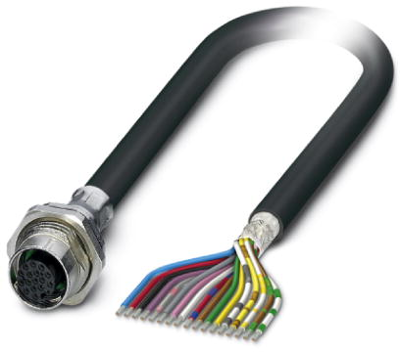

Sensor actuator cable, M12-cable socket, straight to open end, 17 pole, 2 m, PVC, black, 1.5 A, 1442272
Unit Price (€ / pc.)
91.9037 € *
Available: 0 pcs.
Available in 10 days: 14 pcs.
Leadtime: 1 Week **
Device connector, 1442272, Phoenix Contact
Flush-type socket, Shielded, 17-position, M12, A-coded, Rear/screw mounting with M16 thread, with 2 m cable, 17 x 0.14 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 17-polig | |
| Cable length | 2 m | |
| Colour | schwarz | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
