1453287 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to valve connector, 2 pole, 1.5 m, PUR, gray, 4 A, 1453287

Order No.: 61P5066
EAN: 4046356550994
MPN:
1453287
SAC-2P-MS/1,5-PUR/ZC-1L-S SCO
Series: SAC-2P
1453287 Phoenix Contact Sensor-Actuator Cables Image 1
1453287 Phoenix Contact Sensor-Actuator Cables Image 2
1453287 Phoenix Contact Sensor-Actuator Cables Image 3
1453287 Phoenix Contact Sensor-Actuator Cables Image 4
Image may differ
Unit Price (€ / pc.)
67.6753 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
67.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
67.6753 €

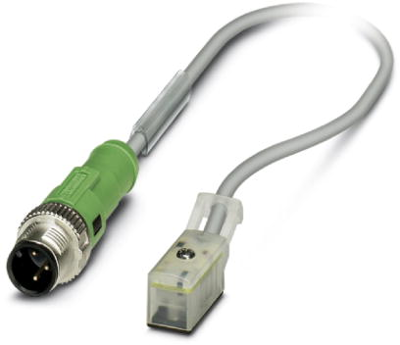

Sensor/actuator cable, 1453287, Phoenix Contact

Sensor/actuator cable, 2-position, PUR, Gray RAL 7001, Plug straight M12 SPEEDCON, Coding: A, on valve connector Festo ZC, with 1 LED, Cable length: 1.5 m

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Save time, thanks to installation with SPEEDCON fast locking system
Technical specifications
Anschluss (1) M12-Kabelstecker, gerade
Anschluss (2) Ventilstecker
Farbe grau
Kabellänge 1.5 m
LED-Anzeige Yes
Material PUR
max. Spannung 24 V
Nennstrom 4 A
Polzahl 2-polig
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
