1453449 | Phoenix Contact
Sensor actuator cable, M8-flange socket, straight to open end, 3 pole, 0.5 m, 4 A, 1453449
Unit Price (€ / pc.)
25.3589 € *
Available: 0 pcs.
Available in 10 days: 2,840 pcs.
Leadtime: 1 Week **

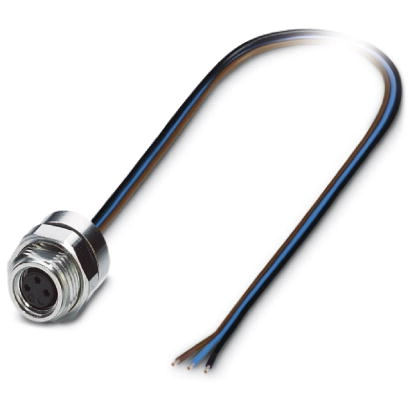

Sensor-actuator connector, 1453449, Phoenix Contact
Device connector, rear mounting, 3-position, Socket, straight, M8, Rear mounting, M12 x 1, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Overvoltage category: I
- Pollution degree: 3
Technical specifications
| Connection (1) | M8-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
