1457335 | Phoenix Contact

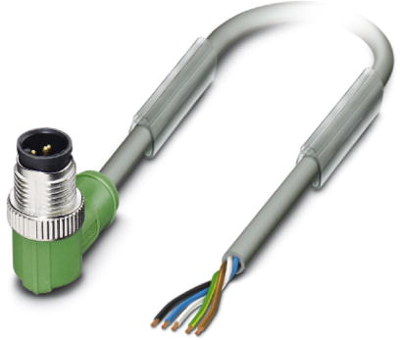

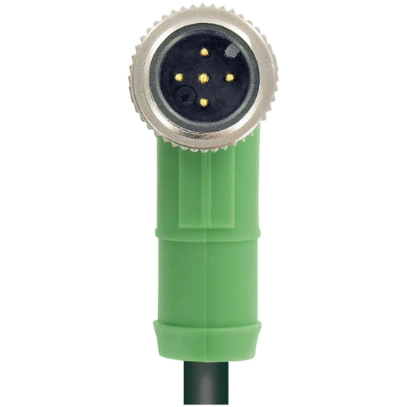

Sensor actuator cable, M12-cable plug, angled to open end, 5 pole, 3 m, PUR, gray, 4 A, 1457335
Unit Price (€ / pc.)
34.0578 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Sensor/actuator cable, 1457335, Phoenix Contact
Sensor/actuator cable, 5-position, PUR halogen-free, Resistant to welding sparks, Highly flexible, Gray RAL 7001, Plug angled M12, Coding: A, on free cable end, Cable length: 3 m, for robots and drag chains
Features
- Easy and safe: 100% electrically tested plug-in components
- Reliable solution for the body shop as cable is resistant to welding sparks
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | grau | |
| Kabellänge | 3 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 48 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP65/IP67/IP68 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
