1458350 | Phoenix Contact
Sensor actuator cable, valve connector DIN shape B to open end, 4 pole, 3 m, PUR/PVC, black, 4 A, 1458350
Unit Price (€ / pc.)
59.024 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 1 Week **

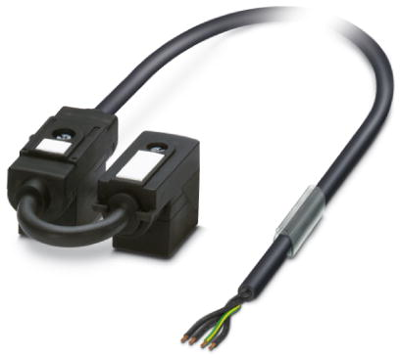

Double valve connector cable, 1458350, Phoenix Contact

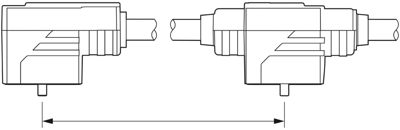

Double valve connector cable, 4-position, PUR/PVC, Black, Free cable end, On valve connector BI (11 mm), with 1 LED, Connected with Z diode and valve connector BI (11 mm), with 1 LED, Connected with Z diode, Cable length: 3 m, Valve connector spacing: 0.1 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Efficient: control valves with two connections via a single connecting cable
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Anschluss (1) | Ventilsteckverbinder DIN form B | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 3 m | |
| LED-Anzeige | Yes | |
| Material | PUR/PVC | |
| max. Spannung | 24 V | |
| Nennstrom | 4 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
