1476788 | Phoenix Contact

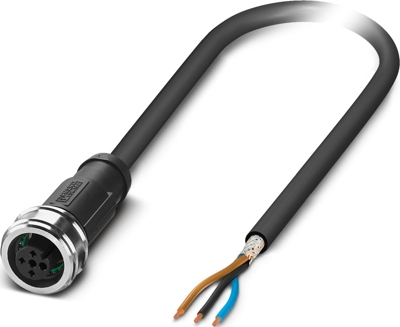

Sensor actuator cable, M12-cable socket, straight to open end, 3 pole, 10 m, PUR, black gray, 4 A, 1476788
Unit Price (€ / pc.)
45.22 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor/actuator cable, 1476788, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded (Advanced Shielding Technology), free cable end, on Socket straight M12 Push Pull, coding: A, cable length: 10 m.
Features
- Easy and safe: 100 % electrically tested plug-in components
- Save time, thanks to installation with push-pull fast locking
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Colour | black gray | |
| Cable length | 10 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 48 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
