1528484 | Phoenix Contact

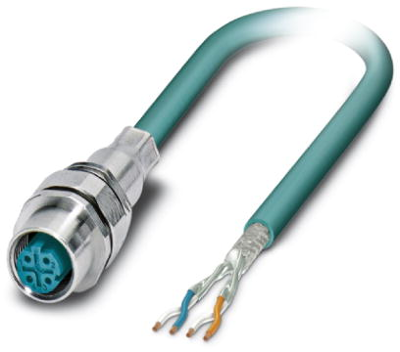

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 0.5 m, PUR, turquoise, 4 A, 1528484
Unit Price (€ / pc.)
63.0343 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Bus system cable, 1528484, Phoenix Contact

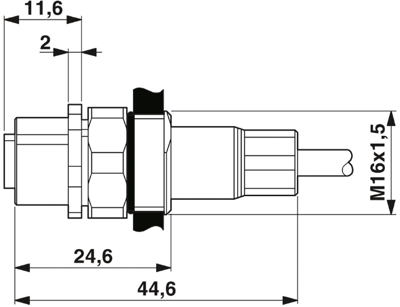

Bus system flush-type socket, Ethernet, 4-position, M12, Shielded, D-coded, Front/screw mounting with M16 thread, Can be positioned, with 0.5 m bus cable, 2 x 2 x 0.14 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12-Kabeldose, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 4-polig | |
| Cable length | 0.5 m | |
| Colour | türkis | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
