1534520 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 2 m, PUR, green, 4 A, 1534520
Unit Price (€ / pc.)
69.4722 € *
Available: 0 pcs.
Available in 10 days: 8 pcs.
Leadtime: 1 Week **

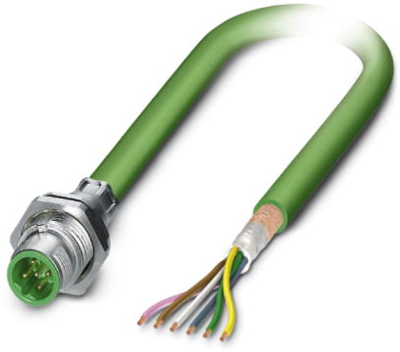

Bus system cable, 1534520, Phoenix Contact
Bus system flush-type male connector, INTERBUS, 5-position, M12, Shielded, B-coded, Rear/screw mounting with M16 thread, with 2 m bus line
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 5-polig | |
| Kabellänge | 2 m | |
| Farbe | grün | |
| Material | PUR | |
| Schutzart (IP) | IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
