1555376 | Phoenix Contact

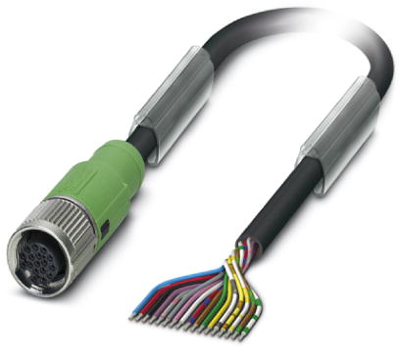

Sensor actuator cable, M12-cable socket, straight to open end, 17 pole, 10 m, PVC, black, 1.5 A, 1555376
Unit Price (€ / pc.)
96.5328 € *
Available: 0 pcs.
Available in 10 days: 33 pcs.
Leadtime: 1 Week **
Sensor/actuator cable, 1555376, Phoenix Contact
Sensor/actuator cable, 17-position, PVC, Black RAL 9005, Free cable end, on socket straight, M12 SPEEDCON, Coding: A, Cable length: 10 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Save space – with high-pos. Connectors
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 10 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 30 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 17-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
