1671098 | Phoenix Contact
Sensor actuator cable, M12-flange socket, straight to open end, 5 pole, 0.5 m, 4 A, 1671098
Unit Price (€ / pc.)
16.0888 € *
Available: 0 pcs.
Next delivery: 10 pcs. on 2025-02-26
Available in 10 days: 67 pcs.
Leadtime: 1 Week **
Total Price:
16.09 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0888 €
10 pcs.
14.1729 €
15 pcs.
13.1971 €
25 pcs.
12.6259 €
50 pcs.
11.9833 €
*incl. VAT plus shipping costs
**Subject to prior sale

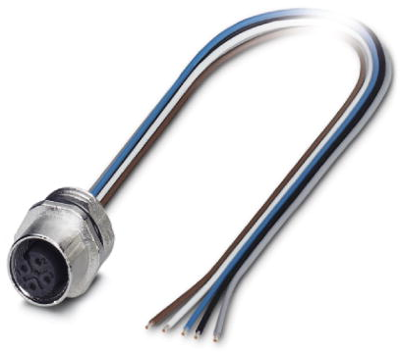

Device connector, 1671098, Phoenix Contact
Device connector front mounting, Universal, 5-position, Flush-type female connector, Straight, M12-Standard, Coding: A , on free cable end, Pg9, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Flanschbuchse, gerade | |
| Anschluss (2) | offenes Ende | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
