1021815 | Phoenix Contact

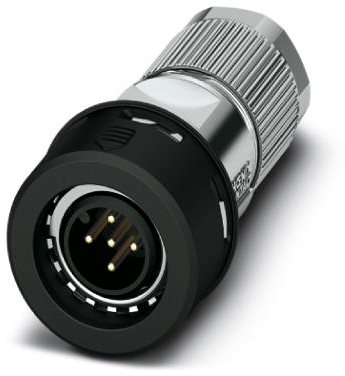

Plug, M12, 5 pole, crimp connection, push pull, straight, 1021815

Order No.: 65P0275
EAN: 4055626514642
MPN:
1021815
SACC-P12MS-5CT-CM SH
Series: SACC
1021815 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
50.5988 € *
Available: 0 pcs.
Available in 10 days: 332 pcs.
Leadtime: 1 Week **
Total Price:
50.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
50.5988 €

Sensor-actuator connector, 1021815, Phoenix Contact

Connector, Universal, 5-position, shielded, plug straight M12 Push-Pull, Crimp connection, knurl material: PA 6.6, external cable diameter 4.5 mm to 7.5 mm, without crimp contacts.

Features

  • Plug and Produce: convenient and secure connection
  • Robust connection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67

Applications

  • For railway applications
Technical specifications
Version Stecker
Thread size M12
Coding A
Contact connection Crimpanschluss
Assembly Kabelmontage
Orientation gerade
Pin number 5-polig
Degree of protection (IP) IP65
Type of locking Push-Pull
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
