1027683 | Phoenix Contact

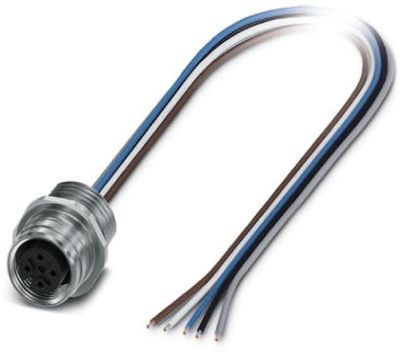

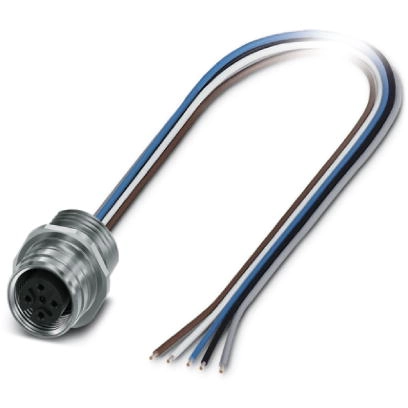

Socket, M12, 5 pole, push pull, straight, 1027683
Unit Price (€ / pc.)
24.7282 € *
Available: 0 pcs.
Available in 10 days: 3 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1027683, Phoenix Contact
Flush-type connector, Universal, 5-position, Socket, straight, M12-Push-Pull, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Easy and quick cabling
- Reliable shield connection
- Unshielded
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Version | Buchse | |
| Thread size | M12 | |
| Coding | A | |
| contact surface | vernickelt/vergoldet | |
| Assembly | Vorderwand-/Schraubmontage | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Push-Pull |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
