1404421 | Phoenix Contact

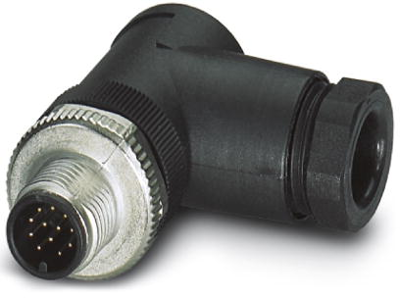

Plug, M12, 12 pole, solder connection, screw locking, angled, 1404421

Order No.: 61P9242
EAN: 4046356694537
MPN:
1404421
SACC-M12MR-12SOL-PG 9-M
Series: SACC
1404421 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
58.0125 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
58.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
58.0125 €

Sensor-actuator connector, 1404421, Phoenix Contact

Connector, Universal, 12-position, Plug angled M12, Solder connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Ausführung Stecker
Gewindegröße M12
Kodierung A
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Orientierung abgewinkelt
Polzahl 12-polig
Schutzart (IP) IP67
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
