1411906 | Phoenix Contact

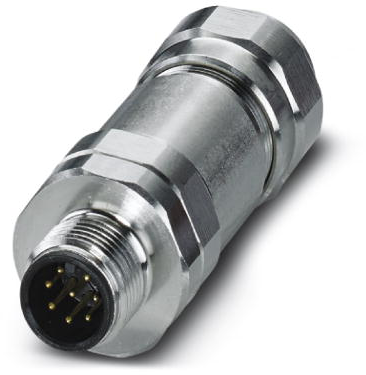

Plug, M12, 8 pole, screw connection, straight, 1411906

Order No.: 61P9314
EAN: 4046356945394
MPN:
1411906
SACC-M12MS-8CON-DM 3-5 SH VA
Series: SACC
1411906 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
101.2095 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **
Total Price:
2,530.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
101.2095 €

Sensor-actuator connector, 1411906, Phoenix Contact

Connector, 8-position, shielded, plug straight M12, Screw connection, knurl material: Stainless steel 1.4404, cable gland M16, external cable diameter 3 mm - 5.5 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Ausführung Stecker
Gewindegröße M12
Kodierung A
Kontaktanschluss Schraubanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Orientierung gerade
Polzahl 8-polig
Schutzart (IP) IP65/IP67/IP69
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
