1424684 | Phoenix Contact

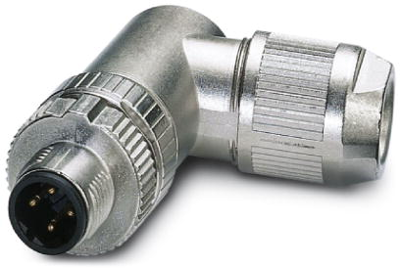

Plug, M12, 4 pole, push-in, screw locking, angled, 1424684
Unit Price (€ / pc.)
34.3434 € *
Available: 0 pcs.
Available in 10 days: 2,450 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1424684, Phoenix Contact
Data connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, Plug angled M12, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm - 8 mm.
Features
- Time-saving Push-Lock connection
- Shock- and vibration-resistant connection
- D-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Version | Stecker | |
| Thread size | M12 | |
| Coding | D | |
| Contact connection | Push-in | |
| contact surface | vernickelt/vergoldet | |
| Assembly | Kabelmontage | |
| Orientation | abgewinkelt | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
