1511857 | Phoenix Contact

Plug, M12, 8 pole, screw connection, screw locking, straight, 1511857

Order No.: 61P9315
EAN: 4017918908638
MPN:
1511857
SACC-M12MS-8CON-PG 9-SH
Series: SACC
Phoenix Contact

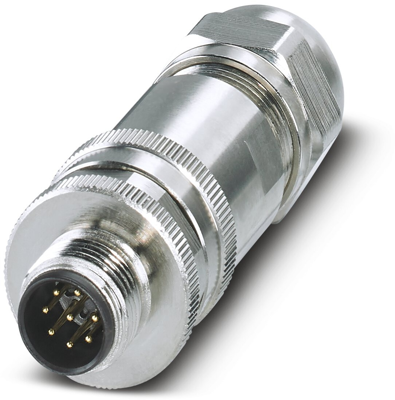

1511857 Phoenix Contact Sensor-Actuator Connectors Image 1
1511857 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
39.4961 € *
Available: 5 pcs.
Available in 10 days: 2,450 pcs.
Leadtime: 2 Weeks **
Total Price:
39.50 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4961 €
5 pcs.
37.1280 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 1511857, Phoenix Contact

Connector, Universal, 8-position, shielded, plug straight M12, Screw connection, knurl material: Nickel-plated brass, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Version plug
Thread size M12
Coding A
Contact connection screw connection
contact surface gold-plated
Assembly cable assembly
Orientation straight
Pin number 8 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
