1529797 | Phoenix Contact
Socket, M12, 8 pole, solder pins, screw locking, straight, 1529797
Unit Price (€ / pc.)
34.6528 € *
Available: 0 pcs.
Available in 10 days: 13 pcs.
Leadtime: 1 Week **

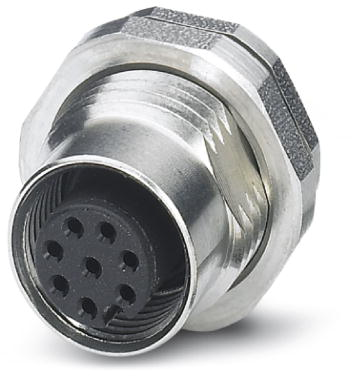

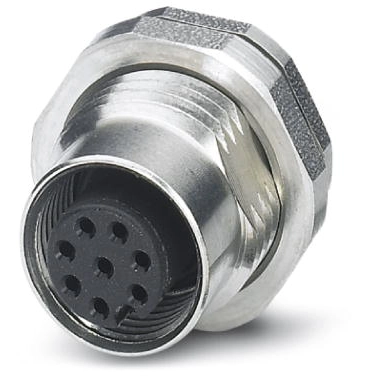

Sensor-actuator connector, 1529797, Phoenix Contact
Sensor/actuator flush-type socket, 8-pos, M12, rear/screw mounting with Pg9 thread, with straight solder connection.
Features
- Easy PCB assembly
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder pins | |
| contact surface | gold-plated | |
| Assembly | rear/screw mounting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67/IP69 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
