1530621 | Phoenix Contact

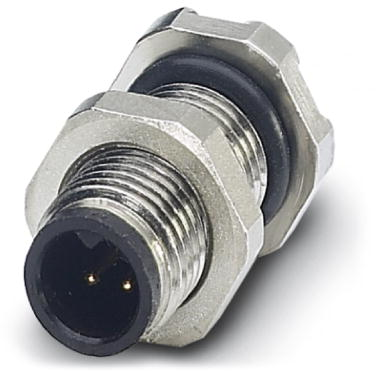

Plug, M5, 3 pole, solder pins, screw locking, straight, 1530621

Order No.: 61P8732
EAN: 4046356024426
MPN:
1530621
SACC-DSI-M5MS-3CON-L180
Series: SACC
Phoenix Contact
1530621 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
18.5640 € *
Available: 18 pcs.
Available in 10 days: 4 pcs.
Leadtime: 2 Weeks **
Total Price:
18.56 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5640 €
10 pcs.
17.0765 €
50 pcs.
15.7080 €
100 pcs.
14.2919 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 1530621, Phoenix Contact

Sensor/actuator flush-type plug, 3-pole, M5, prewall/screw mounting, with straight solder connection.

Features

  • Easy PCB assembly
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Version plug
Thread size M5
Coding A
Contact connection solder pins
contact surface gold-plated
Assembly front wall/screw mounting
Orientation straight
Pin number 3 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
